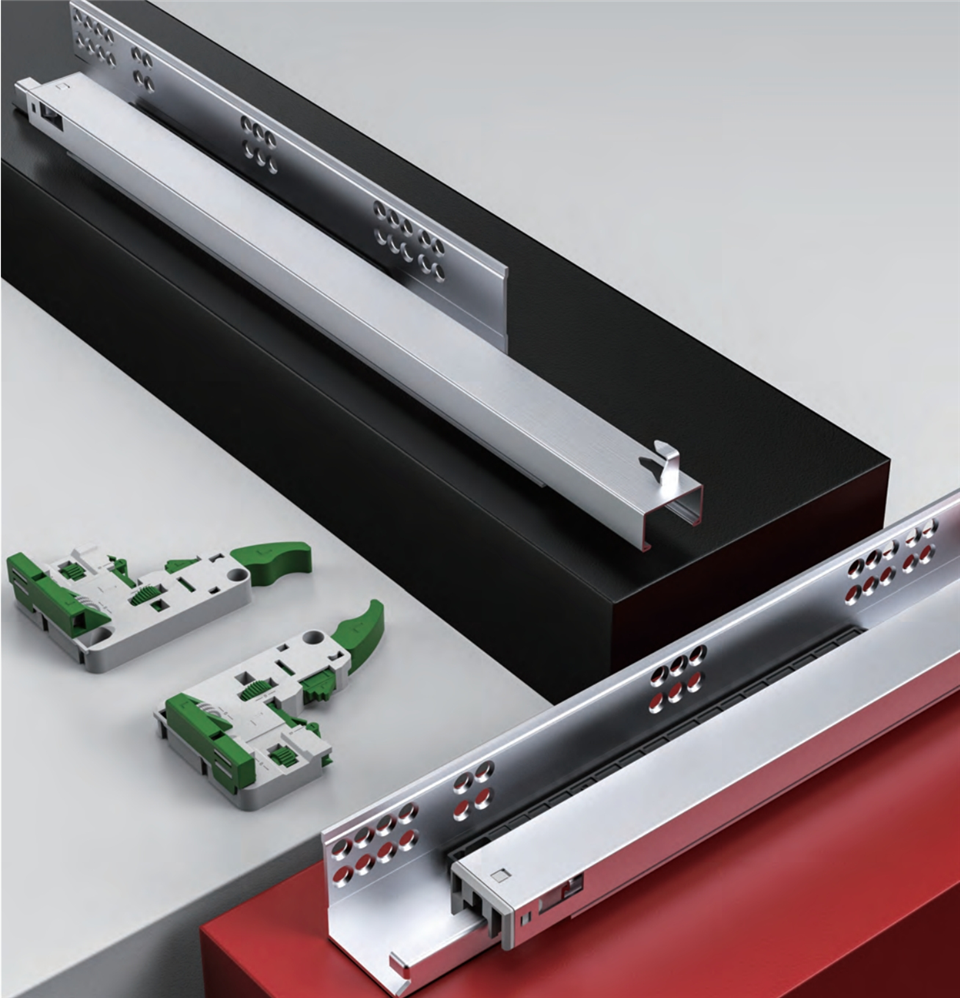

Concealed Undermount Slides
zais undermount slides
Cov tub rau khoom swb yog cov khoom siv txuas nrog cov khoom ruaj khov ntawm cov rooj tog zaum kom cov tub rau khoom xaub mus rau hauv thiab tawm. Muaj ntau hom, feem ntau suav nrog cov menyuam hom, hom pob bearing, hom iav, thiab hom damping. Qhov peb-section zais undermount slides yog ib qho high-end ib ntawm lawv. Nws feem ntau muaj peb ntu: sab hauv tsheb ciav hlau, nruab nrab rail, thiab sab nrauv. Nws cov qauv tsim tso cai rau lub tub rau khoom kom rub tawm tag nrho. Nws yog ntsia rau hauv qab ntawm lub tub rau khoom, tsis tshua pom los ntawm sab nraud, uas tsis tsuas yog txhim kho qhov ua tau zoo ntawm lub tub rau khoom tab sis kuj ua rau cov rooj tog zaum zoo dua thiab zoo nkauj dua.
|
Slides nominal ntev |
Soft close Item No. | Push qhib Yam No. | Teeb / ctn |
|---|---|---|---|
| 260 hli | B3S.250 | B3P.250 | 10 |
| 310 hli | B3S.300 | B3P.300 | 10 |
| 360 hli | B3S.350 | B3P.350 | 10 |
| 410 hli | B3S.400 | B3P.400 | 10 |
| 460 hli | B3S.450 | B3P.450 | 10 |
| 5 10mm | B3S.500 | B3P.500 | 10 |
| 5 60mm | B3S.550 | B3P.550 | 10 |
| 6 10mm | B3S.600 | B3P.600 | 10 |
| Khoom npe | Yam khoom No. | Teeb / ctn |
|---|---|---|
| 2D Locking Devices (sab laug / sab xis) | A2.01 | 100 |
| 3D Locking Devices (sab laug / sab xis) | A3.01 | 100 |
Kev piav qhia
Daim ntawv thov: Kev lag luam thiab tsev neeg tub rau khoom, cov khoom siv zoo sib xws, thiab lwm yam
Qhov hnyav: 35KG
Loj: 300-600 mm
Khoom siv: Galvanized ntawv
Nta: synchronization, kom ntseeg tau tias lub tub rau khoom raug kaw maj mam, du thiab du, nrog cov nyhuv tsis zoo. Cov tub rau khoom tuaj yeem ntsia tau sai thiab tshem tawm yam tsis muaj cuab yeej. Drawer nce thiab nqis kho sab laug thiab txoj cai 0-3mm.
Tsim nyog tsim qauv tsim
Peb-section Design
Ua los ntawm cov tsheb ciav hlau sab hauv, lub tsheb ciav hlau nruab nrab, thiab cov tsheb ciav hlau sab nrauv, cov qauv no ua rau lub tub rau khoom rub tawm tag nrho, ua rau nws yooj yim rau cov neeg siv tawm thiab muab tso rau hauv cov khoom. Tshwj xeeb tshaj yog rau qee cov tub rau khoom sib sib zog nqus, nws tuaj yeem siv tag nrho ntawm qhov chaw sab hauv kom txhua yam khoom hauv tub rau khoom tuaj yeem pom meej.
Undermount Concealed Design
Lub swb yog ntsia rau hauv qab ntawm lub tub rau khoom, yuav luag tsis pom los ntawm sab nraud. Qhov no ua rau cov rooj tog saib huv si thiab zoo nkauj dua, muaj kev nkag siab zoo ntawm kev ncaj ncees, thiab tuaj yeem txhim kho qib thiab tsim kev nkag siab ntawm cov rooj tog. Nws yog qhov tshwj xeeb tshaj yog tsim rau cov chaw uas xav tau siab rau cov tsos, xws li tsev so thiab chaw ua haujlwm.
Superior Performance
Muaj zog Load-bearing Capacity
High-zoo peb-section concealed undermount slides feem ntau muaj ib tug muaj zog load-bearing peev xwm. Lawv tuaj yeem nqa qhov hnyav ntawm kaum lossis ntau pua kilograms, tsim nyog rau kev tso ntau yam khoom hnyav, xws li cov ntaub ntawv, khaub ncaws, khoom siv hauv chav ua noj, thiab lwm yam, thiab tsis ua rau deformation, kev puas tsuaj thiab lwm yam teeb meem, kom ntseeg tau tias kev siv cov tub rau khoom. .
Zoo Buffering thiab Silent Effects
Feem ntau nruab nrog cov khoom siv buffering, thaum lub tub rau khoom kaw, nws tuaj yeem ua kom nrawm nrawm, tsis txhob muaj kev cuam tshuam hnyav ntawm lub tub rau khoom thiab lub txee, txo cov suab nrov thiab tsim kom muaj kev siv nyob ntsiag to. Nyob rau tib lub sijhawm, nws tseem tuaj yeem ua kom ntev kev pabcuam lub neej ntawm cov swb thiab cov tub rau khoom.
Siab Smoothness
Cov pob bearings lossis lwm yam zawv zawg hauv qhov swb tau ua tiav zoo thiab kho, kom ntseeg tau tias lub tub rau khoom swb tau zoo thiab tsis tu ncua thaum lub sijhawm thawb thiab rub cov txheej txheem, nrog me ntsis tsis kam, ua rau nws yooj yim dua thiab siv tau yooj yim dua yam tsis muaj kev sib tsoo lossis tshee.
Yooj yim installation thiab siv
Yooj yim rau nruab
Cov txheej txheem installation yog qhov yooj yim thiab muaj qee qhov kev hloov kho. Txawm hais tias muaj qee qhov sib txawv me me thaum lub sijhawm teeb tsa, lawv tuaj yeem raug kho los ntawm kev hloov kho pem hauv ntej-rov qab thiab sab laug-txoj cai los xyuas kom meej tias cov tub rau khoom tau zoo nrog lub txee thiab tuaj yeem qhib thiab kaw ib txwm, txo qhov teeb meem thiab lub sijhawm. nqi.
Yooj yim ntxuav
Txij li cov swb tau muab zais rau hauv qab ntawm lub tub rau khoom, nws tsis yooj yim rau kev qias neeg nrog plua plav thiab khib nyiab. Tsis tas li ntawd, qee lub npe ntawm peb-section concealed undermount slides yog tsim los nrog cov qauv detachable, uas yooj yim rau cov neeg siv los ntxuav thiab tswj tsis tu ncua kom ua tau zoo ntawm cov swb.
Yooj yim rau siv
Qee qhov peb-section concealed undermount slides kuj muaj qhov rov ua haujlwm. Tsis tas yuav nruab ib lub kov. Tsuas yog maj mam nias lub tub rau khoom kom qhib thiab kaw nws, uas yooj yim dua rau kev khiav lag luam thiab tseem ua rau cov rooj tog zaum yooj yim thiab yooj yim dua.
Kev ceev faj rau kev txhim kho Peb-section zais undermount slides
Kev Ntsuas thiab Kev Npaj Ua Haujlwm
1. Ntsuas qhov loj me ntawm lub tub rau khoom thiab lub txee kom raug, thiab xaiv qhov ntev ntawm qhov swb raws li kom ntseeg tau tias lub tub rau khoom tuaj yeem qhib thiab kaw ib txwm thiab cov swb yuav tsis raug.
2.Kuaj xyuas qhov kev ncaj ncees ntawm tag nrho cov khoom ntawm cov swb kom huv si, thiab npaj cov cuab yeej sib xws xws li cov ntsia hlau thiab cov wrenches kom tau txais kev npaj txhij rau kev teeb tsa.
Kev txiav txim siab ntawm Installation Position
1.Siv ib qib los pab thiab xyuas kom meej meej tias qhov kev teeb tsa ntawm lub swb ntawm lub txee thiab lub tub rau khoom yog kab rov tav thiab ntsug kom tsis txhob lub tub rau khoom raug skewed lossis jammed thaum lub sij hawm thawb thiab rub cov txheej txheem.
2.Thaum txhim kho ob lub swb, siv cov cuab yeej ntsuas los xyuas kom meej tias lawv nyob ntawm qhov siab tib yam thiab sib npaug rau ib leeg, kom lub tub rau khoom sib npaug sib npaug thiab txav mus los.
Cov ntsiab lus tseem ceeb hauv txheej txheem installation
1.Drill qhov tsim nyog ua ntej kom tsis txhob tawg ntawm cov ntoo lossis lub rooj tsavxwm, thiab tom qab ntawd muab cov screws nruj me ntsis txhawm rau txhim kho cov swb ruaj khov yam tsis muaj deforming lub rooj tsavxwm.
2.Thaum sib txuas cov tub rau khoom nrog lub txee, ua tib zoo kho cov ntsia hlau sab hauv thiab sab nraud. Ntxig ib kawg ua ntej, thiab tom qab ntawd maj mam nqa lossis txo qis rau lwm qhov kawg kom nws swb rau hauv smoothly.
Kev kuaj thiab kho
1.Push thiab rub lub tub rau khoom ob peb zaug los kuaj nws qhov smoothness. Yog tias muaj kev cuam tshuam, kev tiv thaiv ntau dhau los yog co, xyuas qhov kev teeb tsa thiab seb puas muaj cov khoom txawv teb chaws hauv cov swb thiab ua kom haum raws li qhov xav tau.
2.Test seb lub buffering muaj nuj nqi yog ib txwm, ua rau lub tub rau khoom kaw maj mam thiab smoothly thaum nws mus txog rau lub kaw txoj hauj lwm. Muab qhov tsim nyog ntawm cov khoom hnyav los ntsuas lub peev xwm thauj khoom, thiab tsis txhob tshaj tus nqi ntsuas.
Thiab Ntau
Yog tias koj txaus siab rau qhov no concealed undermount slides lossis lwm yam khoom muaj feem xyuam, koj tuaj yeem tiv tauj peb txhua lub sijhawm, peb kuj muaj lwm yam khoom siv hauv kev lag luam woodworking. Koj tuaj yeem nias hauv qab no kawm paub ntxiv txog nws.
Cim npe nrov: Suav teb concealed undermount slides manufacturers, lwm tus neeg, Hoobkas
